TELESCOPIC SLIDING GATE KITS

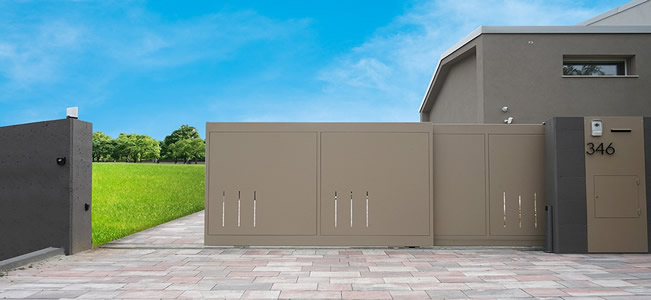

WHY TELESCOPIC ?
Two leaf telescopic gates basically allow twice the opening width into half the opening space. Three leaf uses even less room. If the opening or run off area as we call it is less than than your driveway opening then telescopic may be for you.
Example - If you had a four metre opening but only two and a half metres of run off area with a standard sliding gate there is simply no way to install in this area. Using the telescopic gate kit allows the four metres to slide neatly behind the two and a half metre run off area leaving you four metres of clear driveway.
Telescopic gates have been manufactured for many years essentially in the same way they are largely today. In recent years hardware suppliers have developed telescopic kits which in the main is a box of all the components that we have always used. Some are complicated and fancy and cost as much as the gate itself but still work on the exact same principle. The kits you are reading about today are about as simple as we could make them. The aim is a low cost and simple to build and install kit using the same principles that we have for many years.
Two leaf telescopic gates basically allow twice the opening width into half the opening space. Three leaf uses even less room. If the opening or run off area as we call it is less than than your driveway opening then telescopic may be for you.
Example - If you had a four metre opening but only two and a half metres of run off area with a standard sliding gate there is simply no way to install in this area. Using the telescopic gate kit allows the four metres to slide neatly behind the two and a half metre run off area leaving you four metres of clear driveway.
Telescopic gates have been manufactured for many years essentially in the same way they are largely today. In recent years hardware suppliers have developed telescopic kits which in the main is a box of all the components that we have always used. Some are complicated and fancy and cost as much as the gate itself but still work on the exact same principle. The kits you are reading about today are about as simple as we could make them. The aim is a low cost and simple to build and install kit using the same principles that we have for many years.
TELEKILGT
Two gates covering and opening of up to 10 metres - residential use.
A low cost and simple kit that provides the components required to marry the two gates so they open and close in unison. Maximum opening is 10 metres (10,000mm) and minimum run off room required is 5,500mm. The kit includes your pulleys, cables, adjustment and floor plates as well as top guide blocks and channels.
In addition to this kit you will require the following components -
Track - available in three metre lengths
Wheels - Four WHEELRND90
Gate stops and receivers
Automation kit - Suggest TONE6B or TONE10B
Two gates covering and opening of up to 10 metres - residential use.
A low cost and simple kit that provides the components required to marry the two gates so they open and close in unison. Maximum opening is 10 metres (10,000mm) and minimum run off room required is 5,500mm. The kit includes your pulleys, cables, adjustment and floor plates as well as top guide blocks and channels.
In addition to this kit you will require the following components -
Track - available in three metre lengths
Wheels - Four WHEELRND90
Gate stops and receivers
Automation kit - Suggest TONE6B or TONE10B
TELEKIHVY

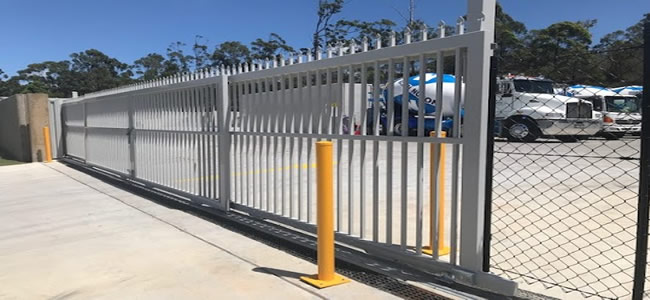

Two gates covering and opening of up to 8 metres - commercial and industrial use.
This is a more robust kit that provides the components required to marry the two gates so they open and close in unison. Maximum opening is 8 metres (8,00mm) and minimum run off room required is 4,500mm. The kit includes your pulleys, cables, adjustment and floor plates as well as top guides and rollers.
The telescopic heavy kit is designed for commercial and industrial gates with both heavier gate leaves and higher duty cycle than a residential property. The kit can be extended up to 15 metre openings by using a longer cable length.
In addition to this kit you will require the following components -
Track - available in three metre lengths
Wheels - Four WHEELRND90
Gate stops and receivers
Automation kit - Suggest MASTER18QR
Two gates covering and opening of up to 8 metres - commercial and industrial use.
This is a more robust kit that provides the components required to marry the two gates so they open and close in unison. Maximum opening is 8 metres (8,00mm) and minimum run off room required is 4,500mm. The kit includes your pulleys, cables, adjustment and floor plates as well as top guides and rollers.
The telescopic heavy kit is designed for commercial and industrial gates with both heavier gate leaves and higher duty cycle than a residential property. The kit can be extended up to 15 metre openings by using a longer cable length.
In addition to this kit you will require the following components -
Track - available in three metre lengths
Wheels - Four WHEELRND90
Gate stops and receivers
Automation kit - Suggest MASTER18QR
MULTITELESCOPIC
Three gates covering and opening of up to 12 metres - residential use.
A low cost and simple kit that provides the components required to marry the three gates so they open and close in unison. Maximum opening is 12 metres (12,000mm) and minimum run off room required is 4,500mm. The kit includes your pulleys, cables, adjustment and floor plates as well as top guide blocks and channels.
In addition to this kit you will require the following components -
Track - available in three metre lengths
Wheels - Four WHEELRND90
Gate stops and receivers
Automation kit - Suggest MASTER18QR
Three gates covering and opening of up to 12 metres - residential use.
A low cost and simple kit that provides the components required to marry the three gates so they open and close in unison. Maximum opening is 12 metres (12,000mm) and minimum run off room required is 4,500mm. The kit includes your pulleys, cables, adjustment and floor plates as well as top guide blocks and channels.
In addition to this kit you will require the following components -
Track - available in three metre lengths
Wheels - Four WHEELRND90
Gate stops and receivers
Automation kit - Suggest MASTER18QR
PRICING
TELEKITLGT -
Two gate - Residential kit - Opening to 10,000mm. (10 metres)
$296.00
TELEKITHVY -
Two gate - Commercial industrial kit - Opening to 8,000mm. (8 metres)
$1145.00
MULTITELESCOPIC -
Three Gate - Residential kit - Opening to 12,000mm. (12 metres)
$527.00
DOWNLOAD & MANUALS
LIGHT KIT MANUAL -
HEAVY KIT BROCHURE -
HEAVY KIT MANUAL -
VIDEO SUPPORT -
MULTITELESCOPIC KIT MANUAL -
OPTIONS
Apart from either kit above you will also need enough track for both gates, multiple sets of wheels for each gate leaf, gate automation kits and gate receivers and stops as required.
