KEYPADS & PUSHBUTTONS

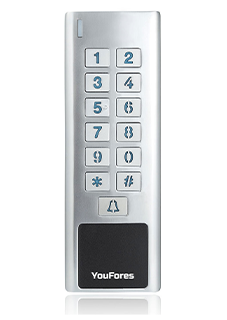

Card type: 125KHz EM, HID card and 13.56 MHz Mifare card
Strong Zinc Alloy Electroplated anti-vandal case
2000 uses, supports access by card, PIN, card + PIN
Weatherproof, conforms to IP67.Works well in most of severe conditions
Wiegand 26-37 bits input & output
One relay operation, pulse mode, toggle mode
Digital backlight keypad design
Anti-duress and Anti-passback for single door
SHORT PROGRAMMING VIDEO

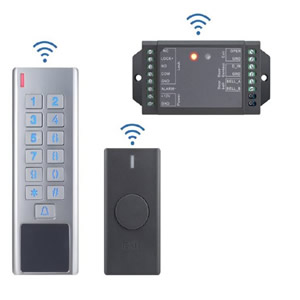

WLPK2-EM is a wireless access control keypad. It has a hard plastic case, reads 125KHz ID card, adopting 433MHz wireless communication technology and TEA+ rolling code encryption algorithm. And it can be connected with door contact, external alarm, external exit button, external door bell.
WLPK2-EM consists of three parts:
a) Wireless Access Control Keypad
b) Wireless Controller
c) Wireless Exit Button
One wireless controller can be connected with 5 devices (Wireless access control keypad + Wireless exit button). And one Wireless access control keypad (or one Wireless exit button) can be connected with unlimited Wireless controllers.
Keypad requires three AAA batteries (not included)
SHORT PROGRAMMING VIDEO

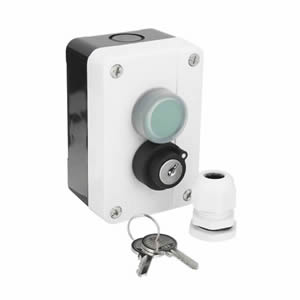

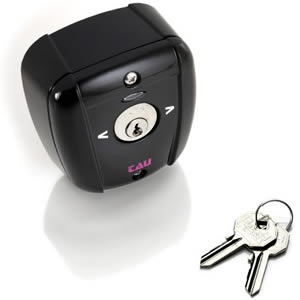

Robust hard wired key switch with spring loaded return for
momentary operation. Simple to install.
ASA WIRELESS KEYPAD
The P6 is a wireless keypad that is powered by battery and is
suitable for all ASA receivers on board and the RSK4 stand alone
KEYPADP6 - $136.00
BENINCA WIRELESS KEYPAD
Wireless digital key pad to be used together with Beninca
receivers - batteries included. Vandal-proof digital keypad with
aluminium casing, polished glass- effect front panel and chrome
plated buttons with LED back- lighting. acoustic feedback when the
buttons are pressed and the code entered. The red or green central LED
and the buzzer, with a repeated or long tone, indicate whether the code
has been entered correctly or not. An access password can be set to
protect the system from unauthorised persons changing the settings.
The keypad is quick and easy to install. Outdoor range 100m.
SHERLO WIRELESS KEYPAD
The Sherlo Wireless Keypad is designed for Secure access control of buildings, properties, gate/garage entrances, internal doors, striker locks and even arming/disarming alarm panels. The unit can be programmed with up to 9 RF Channels to control different receivers. You can very easily program the keypad on a PC in Notepad so that you don't have to waste time manually programming the keypad. This can then be very easily & reliably saved onto the Keypad using a microSD card. The keypad is battery powered, but has a 12V DC wired input connector.
Wireless Code hopping
1000 unique Pin code from 1-10 digit
Backing up the unit with a microSD card
Wrong code lock out function
9 Channel RF outputs
1 Door bell RF output
Receiver - SHERLORX4500

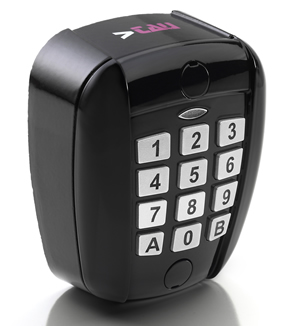

TAU WIRELESS KEYPAD
The TAU wireless keypad is a very smart and robust unit suitable
for outdoor installations. The keypad is capable of four different
pin codes allowing multiple users. The TAU wireless keypad can be married
to either the TAU built in receiver as used in TAU boom gates or any of
the TAU built in receivers in motors like the TONE range. Of course you
can always use the TAU stand alone receiver and use on any system
SEA WIRELESS KEYPAD
Wireless keypad with 12 backlit buttons (only when used)
Rolling code PLUS (Billions of combinations possible)
433 MHz frequency
Two-channels (two different codes)
IP54 Protection class
Compatible with UNI rolling code receivers
2x3V lithium batteries

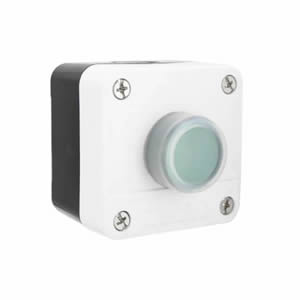

Simple flush mount exit button with normally open and common terminals.
Quality waterproof outdoor pushbutton.
