ELECTRIC GATE LOCKS
ELECTRIC DROP BOLT CLICK HERE
Debate has been ongoing for years as to when an automatic swing gate needs an electric lock. Some say when a gate is wider than 1.8 metres whilst others will say 2.5 metres. The reality is it depends on the degree of security you wish to acheive. If the gate is automated simply for convenience and has little or new security value then perhaps you can get away without but if any degree of security is required please use the lock.

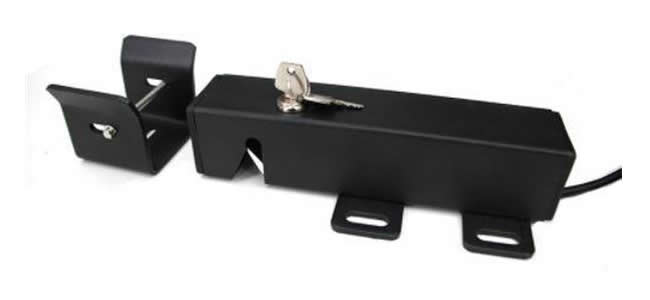

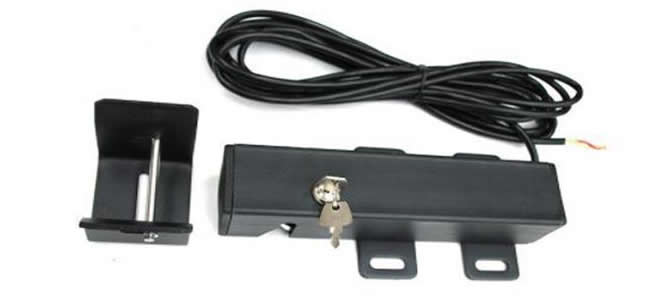

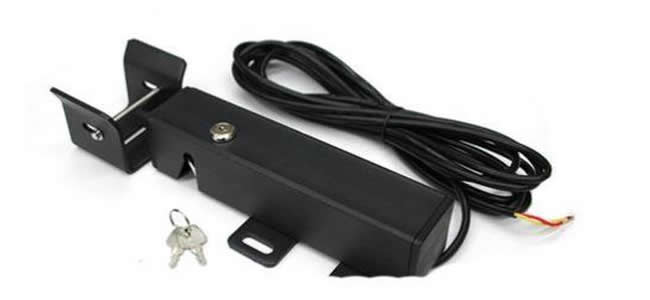

LM149 ELECTRIC SWING OR HINGED GATE LOCK

Electric gate lock by Sanford Tools. Handy lock to increase security of double gate installations as it locks the gates together.
  • Innovative locking system, with a “rotary hook deadbolt”;
  • 12 volt DC
  • Pull resistance of up to 2000 kg;
  • Excellent vibration resistance and impact strength (patented system);
  • Protective steel case totally enclosing the lock and the striker.
    • LM149 - $167.00
    Manual - Click Here
    Electric Gate Lock

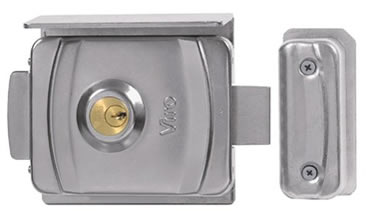

    VIRO ELECTRIC SWING OR HINGED GATE LOCK

    Galvanised lock by Viro suits left and right hand swing gates as well as bottom fit. Unique rotating tongue assists operation and dramatically reduces maintenance. Powered by 12 or 24 volts dc. Comes with standard left or right hand striker.
    LOCKELEC - $312.00
    Manual - Click Here

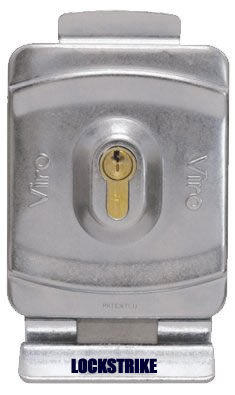

    Lock Bottom Fit
    Bottom strike for LOCKELEC
    LOCKSTRIKE - $29.00
    ELS Lock

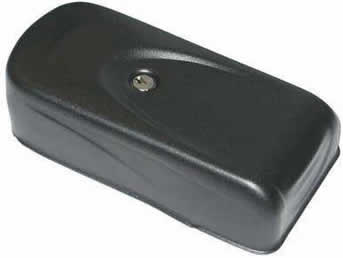

    CISA ELECTRIC SWING OR HINGED GATE LOCK

    Electric gate lock by CISA. Handy lock to increase security of double gate installations as it locks the gates together.
  • Innovative locking system, with a “rotary hook deadbolt”;
  • Pull resistance of up to 2000 kg;
  • Excellent vibration resistance and impact strength (patented system);
  • Protective steel case totally enclosing the lock and the striker.
    • ELSLOCK - $274.00
    ELECTRADROP

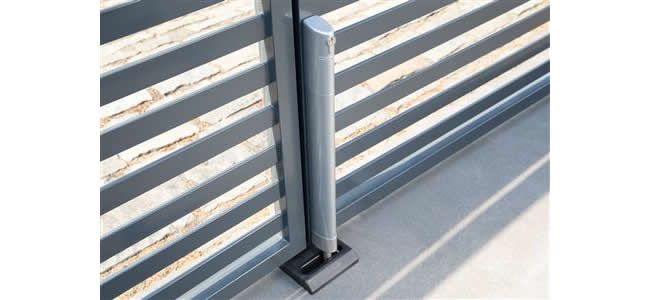

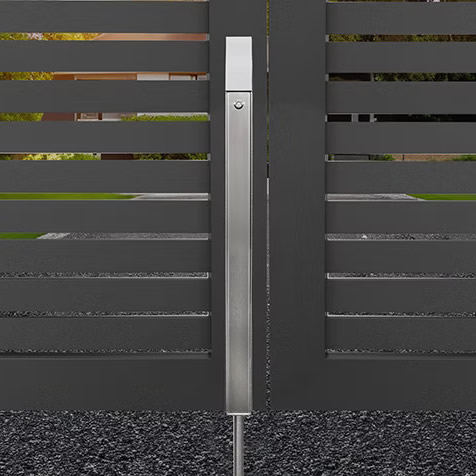

    LOCINOX ELECTRADROP SWING OR HINGED GATE LOCK

  • Vandal resistant, powdercoated aluminium housing
  • Easy mounting with Quick-Fix
  • To be connected to the warning light on automated gates (min 3 sec prewarning signal)
  • Mechanical release possible (by key) in case of emergency or power failure
  • Fitted with relay for dropbolt detection
  • Obstacle detection with automatic stop of the dropbolt
  • Throw: 115 mm
  • Dropbolt diameter: 20 mm
  • For gate profiles: 40 mm or more
  • Vertical mounting
  • Consumption: 25 W / Standby: 0,2 W
  • 5 m cable included
  • Included: 3012-37-STD cylinder
    • ELCTRADROP Electric drop bolt - $1443.00
    Electradrop Manual - Click Here
    SABO Double gate keeper - $98.00
    Sabo Manual - Click Here
