BIG18 SLIDING AUTOMATIC GATE OPENER
The BIG18 industrial sliding automatic gate opener is designed for industrial sliding gates to 2500kg.
400 VOLT SLIDING ELECTRIC GATE OPERATOR- INDUSTRIAL - 2500KG

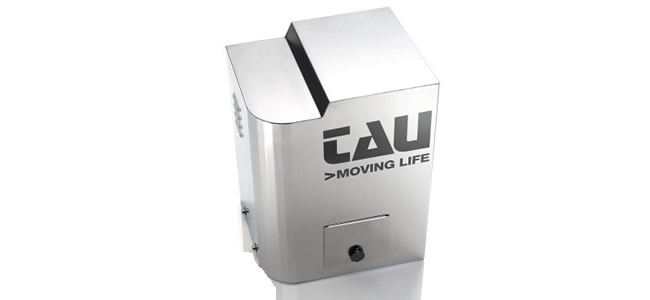

Manufactured by TAU in Italy the BIG18 is a 3 phase 400 volt sliding gate operator. Like all sliding gate operators the BIG18 is non reversible with manual override by key. The BIG18 is suitable for gates to 2500 kilograms in weight.
You can choose between input power for the BIG18 of 3 phase if available or simply run single phase and use the inverter.Stainless steel cover
Industrial gearbox
Adjustable mechanical clutch
3 phase power input or single phase via inverter
The BIG18 has a built in control board with inputs for photocells and switches etc. One of the added advantages of using the inverter is the ramp up and ramp down which when used in conjunction with the BIG18 board provides great control over large gates.
You can choose between input power for the BIG18 of 3 phase if available or simply run single phase and use the inverter.
PRICING
BIG18 -
Motor complete with logic control board
$2194.00
INVERTER -
Convert single phase 240 volts to 3 phase 400 volts
$486.00
RACKSTEEL -
One metre lengths of steel rack with adjustable fixing angle.
$42.00
SPECIFICATION
Motor Voltage -
400 volts AC (Use 3 phase or single phase supply with inverter)
Current Standby -
100mA
Current at use -
3.0A
Motor power -
1000W
Maximum thrust -
1850N
Operating speed -
10 metres per minute
Maximum gate size -
2500 kg
Duty cycle -
55%

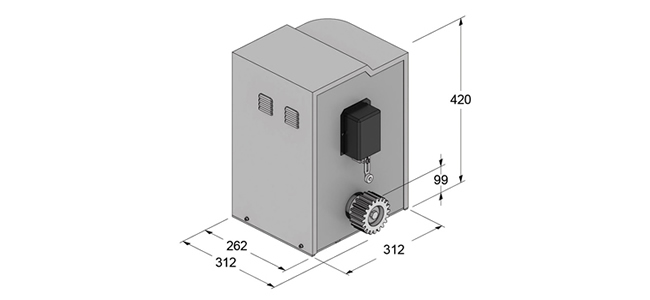

Height -
420mm
Width -
312mm
Depth -
312mm
Weight -
35 Kg
IP rating -
IP44
DOWNLOAD & MANUALS RESOURCE PAGE
OPTIONAL
RACK - Most sliding gate systems require rack (There are a few chain drive operators for industrial gates). Available in steel reinfoced nylon for gates up to 800 kilograms and a larger galvanised steel version for heavier industrial gates. One metre lengths with easy fix points. Click to view.
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. Click to view.
MAINS POWER FILTER - Gate automation like this usually is installed on commercial and industrial sites where you can be pretty certain the mains power is less than desirable. Dirty power can result in lack of reliability and increased service costs. Installing a good quality filter will not only guard against spikes and surges but clean up the power before it reaches your electronics. There is more information here.
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. Click to view.
MAINS POWER FILTER - Gate automation like this usually is installed on commercial and industrial sites where you can be pretty certain the mains power is less than desirable. Dirty power can result in lack of reliability and increased service costs. Installing a good quality filter will not only guard against spikes and surges but clean up the power before it reaches your electronics. There is more information here.
