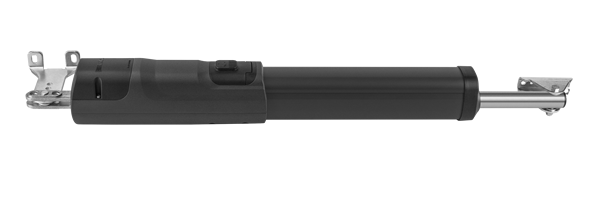

TOM3024 AUTOMATIC GATE OPERATOR
The TOM series of motors is made by Italian company Beninca which translates into quality, reliability and performance. The TOM range uses linear shaft technology for added length and strength and 24 volt DC motors.
24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL & COMMERCIAL - 3.0 METRE LEAF
Manufactured by Beninca in Italy the TOM series of linear actuators use a very powerful 24 volt swing gate electro mechanical operator. What makes TOM so special (and yes a little more expensive than most) is just below the top shaft cover. Easily accessible and adjustable mechanical stops. That along with ability to wire encoders makes the TOM highly adaptable to difficult sites where physical stops may be a problem to install. The TOM is a non reversible operator with key operated manual override but one of the main benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override key.
Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft.. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions
It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.
Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft.. Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets. The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum. The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator. The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions
It is possible to use a variety of control boards to control the TOM but the factory designed board is the BRAINY which can be used as a one or two motor controller with a host of programmable parameters.
PRICING
TOM3024 -
Single operator for gates to 3.0 metres wide
$961.00
LOGICBENINCA24 -
Logic control for one or two TOM motors
$840.00
REMBENINCA -
2 channel 433mhz key ring style remote control.
$69.00
BENINCAKEYPAD -
BENINCA wireless outdoor keypad
$415.00
SOLAR24.25.26KIT -
2 x 25W panel, 2 x 26ah battery, regulator
$609.00
OUTSWING -
Zinc dipped 8mm solid steel outswing bracket
$76.00
SPECIFICATION
Motor Voltage -
24 volts DC
Current Standby -
0mA
Current at use -
5.5A
Motor power -
89W
Maximum thrust -
1500N
Opening Time 90 degrees -
11 seconds
Maximum gate width -
3000 mm
Duty cycle -
80%
Height -
114mm
Width -
96mm
Length -
1175mm
Weight -
9 Kg
IP rating -
IP44
DOWNLOAD & MANUALS RESOURCE PAGE
OPTIONS
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
