LOGIC CONTROLLER ID200

12/24 VOLT LOGIC CONTROLLER FOR SWING GATES

Logic controllers do not come more versatile than the ID200. Based on the older K50 the ID200 can be used for controlling 12 or 24 volt motors, with or without limit switches on swing gates. Added to that it is the most popular solar gate control board ever seen in this country.

Last but not least it is as logic control boards go feature rich and low in price making it exceptional value.

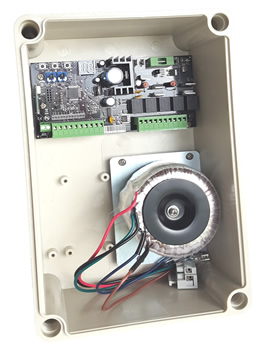

The ID200 comes in an outdoor enclosure with built in transformer power supply, battery backup module and built in wireless receiver.

LOGICID200 -

12/24 volt with transformer and built in receiver

$447.00

REMGR -

Key ring style four channel remote control transmitters

$50.00

KEYPADP6 -

Wireless outdoor keypad

$146.00

Motor Voltage -

12 or 24 volts DC - Single or double

Current Standby -

35mA

Battery Backup -

Built In

Dimensions -

180mm x 210mm x110mm

Photocell In Close -

Yes

Photocell In Open -

No

Photostop Input -

Yes

Stop Input -

Yes

Limit Switch Inputs -

Yes (Optional)

Encoder Inputs -

Yes (Optional)

Open Stop Close Input -

Yes

Separate Close Input -

No

Automatic Close -

Yes

Security Close -

No

Pedestrian Input -

Yes

Buzzer Output -

Flashing light output via relay

Flashing Light Output -

Yes

Courtesy Light Output -

No

Pedestrian Via Receiver -

Yes

Electronic Force Adjust -

Yes

Slow Speed In Approach -

Yes

Slow Speed Adjustable -

Yes

Dual Wing Delay -

Yes

Wing Delay Adjustable -

Yes

Electric Lock Output -

Yes

Lock Thrust Release -

Yes

Thrust To Lock -

Yes

LOGIC CONTROL MANUAL -

Click here to download the logic control manual.

LOGIC CONTROL VIDEO -

You can watch a short video on programming the ID200 here.

PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.

ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
