LOGIC D749MA 12V AUTOMATIC SWING GATE CONTROLLER
12 VOLT LOGIC CONTROLLER FOR SINGLE OR DOUBLE SWING GATES
Some control boards are designed and manufactured dedicated to a specific range of motors whilst others are generic and can be used on many motors. The D749MA is in the first group being purpose designed for the TAU range of low voltage motors with encoder.
The encoder technology enables the control board to know exactly where the gate is every millimeter of the way. Encoder technology is not new to TAU having pioneered it back when nobody wanted to do low voltage motors because they were too expensive. Now of course they have the worlds best.

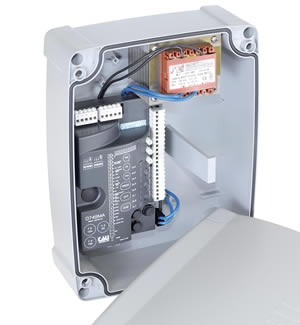

The D749MA comes in a rugged outdoor enclosure with a built in transformer power supply.
The encoder technology enables the control board to know exactly where the gate is every millimeter of the way. Encoder technology is not new to TAU having pioneered it back when nobody wanted to do low voltage motors because they were too expensive. Now of course they have the worlds best.
The D749MA comes in a rugged outdoor enclosure with a built in transformer power supply.
PRICING
LOGICD749MA -
Control board in outdoor enclosure
$701.00
REMTAU -
2 channel 433mhz key ring style remote control.
$66.00
TAUKEYPAD -
TAU wireless outdoor keypad
$268.00
DIAMONDBATT -
Battery leads for TAU control board. (Requires 9ah battery)
$7.30
Motor Voltage -
12 volts DC - Single or double
Current Standby -
35mA
Battery Backup -
Built In
Photocell In Close -
Yes
Photocell In Open -
No
Photostop Input -
No
Stop Input -
Yes
Limit Switch Inputs -
No
Encoder Inputs -
Yes)
Open Stop Close Input -
Yes
Separate Close Input -
No
Automatic Close -
Yes
Security Close -
No
Pedestrian Input -
Yes
Buzzer Output -
No
Flashing Light Output -
Yes
Courtesy Light Output -
Gate Open Output
Pedestrian Via Receiver -
Yes
Electronic Force Adjust -
Yes
Slow Speed In Approach -
Yes
Slow Speed Adjustable -
Yes
Dual Wing Delay -
Yes
Wing Delay Adjustable -
Yes
Electric Lock Output -
Yes
Lock Thrust Release -
No
Thrust To Lock -
No
DOWNLOAD & MANUALS
LOGIC CONTROL MANUAL -
OPTIONS
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
