LOGIC CONTROLLER CA310
240 VOLT LOGIC CONTROLLER FOR HINGED GATES
Controlling 240 volt swing gate motors does not come much more economical than this. The CA310 has proven itself as a handy replacement over the years for any number of older 240 volt motors and still finds it's way today into brand new motors like the super reliable ASA600240V. Basically a feature rich version of the older K32 the CA310 is another control board from the Italian company GR and has been used in gates worldwide.

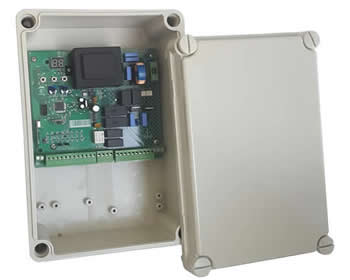

The CA310 comes with a built in transformer power supply and built in wireless receiver in outdoor enclosure.
The CA310 comes with a built in transformer power supply and built in wireless receiver in outdoor enclosure.
PRICING
LOGICCA310 -
240 volt with transformer and built in receiver
$325.00
REMGR -
Key ring style four channel remote control transmitters
$50.00
KEYPADP6 -
Wireless outdoor keypad
$146.00
SPECIFICATION
Motor Voltage -
240 volts AC - Single or double
Current Standby -
35mA
Dimensions -
180mm x 210mm x110mm
Photocell In Close -
Yes
Photocell In Open -
No
Photostop Input -
Yes
Stop Input -
Yes
Limit Switch Inputs -
No
Encoder Inputs -
No
Open Stop Close Input -
Yes
Separate Close Input -
No
Automatic Close -
Yes
Security Close -
No
Pedestrian Input -
Yes
Buzzer Output -
Flashing light output via relay
Flashing Light Output -
Yes
Courtesy Light Output -
No
Pedestrian Via Receiver -
Yes
Electronic Force Adjust -
Yes
Slow Speed In Approach -
Yes
Slow Speed Adjustable -
Yes
Dual Wing Delay -
Yes
Wing Delay Adjustable -
Yes
Electric Lock Output -
Yes
Lock Thrust Release -
Yes
Thrust To Lock -
Yes
DOWNLOAD & MANUALS
LOGIC CONTROL MANUAL -
OPTIONS
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
