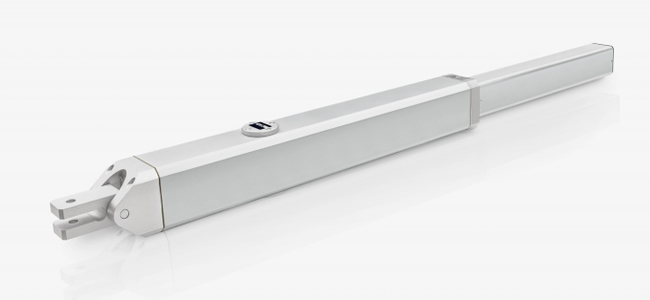

HD80 Swing Automatic Gate Operator

The HD80 is the biggest automatic gate opener in our range. It is a hydraulic operator designed for high duty cycle commercial, industrial and residential electric driveway gates up to eight metres wide.

240 VOLT HYDRAULIC GATE OPERATOR - COMMERCIAL / INDUSTRIAL - 8.0 METRE LEAF

Manufactured by Beninca in Italy the HD80 is a 240 volt swing gate hydraulic operator. The use of hydraulics in swing gate motors has been around for many years with the motor, tank and pump all contained within the housing. As with all things hydraulic gate operators come in various levels of quality but given that hydraulics are essentially designed for demanding sites our attitude is that they need to be the best and no corners should be cut. To this end Beninca CAB is recognised as being in the top manufacturers in the world of hydraulic gate motors and maintains high levels of quality by producing all vital components in house. Low side room is a feature of this operator needing as little as 150mm. The HD80 is a reversible operator with key operated manual override. The HD80 is suitable for gates to eight metres wide and likes nothing better than a high duty cycle.

It is possible to use a variety of control boards to control the HD80 including the CB6 and the D770. The suggested board is the LOGICD770 which has thrust control to regulate the HD80 force and can be used as a one or two motor controller.

HD80 -

Single operator for gates to 8.0 metres wide

$4145.00

LOGICTAUD770 -

Logic control for one or two HD80 motors

$399.00

Motor Voltage -

240 volts AC

Current Standby -

0mA

Current at use -

1.6A

Motor power -

310W

Maximum thrust -

10,000N

Operating speed -

.75 cm / second

Maximum gate width -

8000 mm

Duty cycle -

70 operations per hour

Height -

107mm

Width -

98mm

Length -

1436mm

Weight -

18.0 Kg

IP rating -

IP55

PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.

ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
