HD50-24 Swing Automatic Gate Operator
The HD.5024 is a 24 volt powered hydraulic gate opener. It is a hydraulic operator designed for high duty cycle commercial, industrial and residential electric driveway gates up to five metres wide.
24 VOLT HYDRAULIC GATE OPERATOR - COMMERCIAL / INDUSTRIAL - 5.0 METRE LEAF

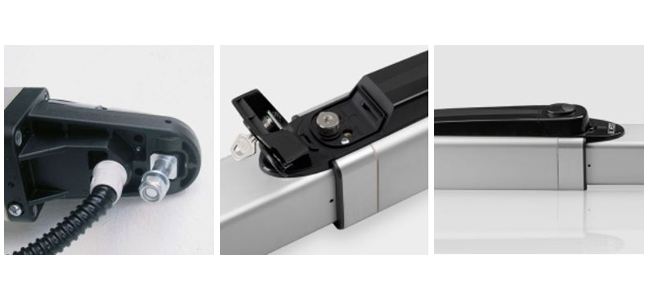

Manufactured by Beninca in Italy the HD50-24 is a 24 volt swing gate hydraulic operator. The use of hydraulics in swing gate motors has been around for many years with the motor, tank and pump all contained within the housing. As with all things hydraulic gate operators come in various levels of quality but given that hydraulics are essentially designed for demanding sites our attitude is that they need to be the best and no corners should be cut. To this end Beninca CAB is recognised as being in the top manufacturers in the world of hydraulic gate motors and maintains high levels of quality by producing all vital components in house. Low side room is a feature of this operator needing as little as 100mm. The HD.5024 is a self locking operator with key operated manual override but it is recommended to use an automatic lock on all gate widths exceeding 1.8 metres. The HD.5024 is suitable for gates to five metres wide and likes nothing better than a high duty cycle.

The control board specifically designed fot the HD.5024 is the HYBRA24.
PRICING
HD5024EAC -
Single operator for gates to 5.0 metres wide
$2288.00
HYBRA24 -
Logic control for one or two HD5024EAC motors
$941.00
REMBENINCA -
4 channel 433mhz key ring style remote control.
$69.00
BENINCAKEYPAD -
BENINCA wireless outdoor keypad
$415.00
SPECIFICATION
Motor Voltage -
24 volts DC
Current Standby -
0mA
Current at use -
5.0A
Motor power -
240W
Maximum thrust -
4,000N
Operating speed -
2.0 cm / second
Maximum gate width -
5000 mm
Duty cycle -
70 operations per hour
Height -
120mm
Width -
85mm
Length -
1177mm
Weight -
18.0 Kg
IP rating -
IP55
DOWNLOAD & MANUALS RESOURCE PAGE
Use the QR Code below or click anywhere in this link to the Automatic Gates information page and resources for this product.
HD5024 QR CODE
OPTIONS
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.

ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
