LOCINOX FORTYLOCK PEDESTRIAN GATE LOCK

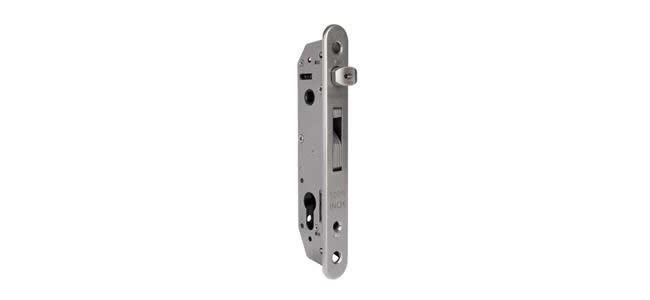

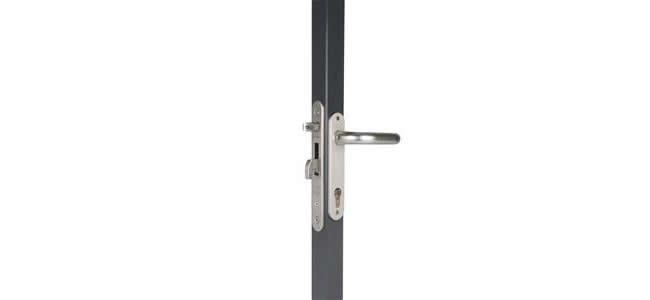

Insert lock with 20mm backset for profiles of 40mm or more. Insert lock with 100% stainless steel mechanism. The stainless steel and adjustable self-latching bolt combined with the right keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open. The lock can be installed on metal, aluminum and PVC gates. Thanks to the patented "Click-It" system, mounting the lock can be done in a matter of seconds.

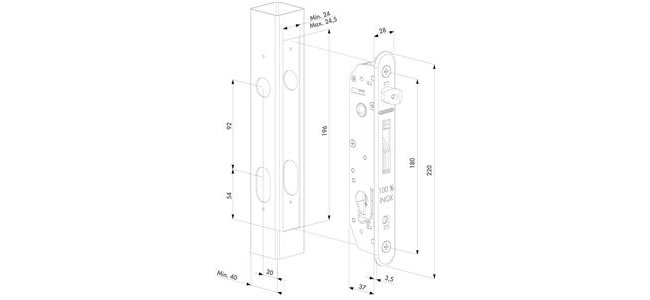

INSERT LOCK WITH 20 MM BACKSET FOR PROFILES OF 40 MM OR MORE
  • Lockmechanism with cover plate against dirt penetration
  • Patented "Click-It" system makes tapping tread in the profile unnecessary
  • Continuous adjustment of the daybolt up to 10 mm without dismounting the lockbox
  • Key-operated self-latching bolt
  • Mechanism, hook, frontplate, latchbolt: stainless steel
  • Easy left or right changing of the self-latching daybolt

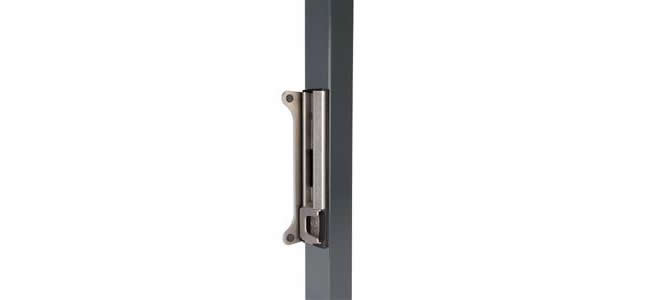

  • Stainless steel hook for secure anchoring
  • Throw of the hook: 21 mm
  • Optional: Cover shield for handle & cylinder holes in aluminium, polyamide or stainless steel
  • Handles to be ordered separately
  • Compatible with all Europrofile cylinders
  • PRICING
    FORTYLOCKSET -
    Complete gate lock set including keeper
    $354.00
    INTRALEC -
    Electric strike to suit FORTYLOCK
    $508.00
    DOWNLOAD & MANUALS
    INSTALLATION MANUAL -
    Click here to download the Intralec installation manual.
    INSTALLATION MANUAL -
    Click here to download the Fortylock installation manual.
