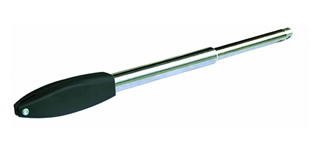

E3300 AUTOMATIC FARM GATE OPERATOR
12 VOLT ELECTRIC SWING GATE OPERATOR - FARM GATES - 5.0 METRE LEAF
When designing and building this motor we took a leaf from the Italian engineers of our sliding gate motor and concentrated on simplicity of build delivering function and leaving style as a secondary consideration.
So if you are looking for fashion the E3300 may not be for you but if you want to open and close a farm gate using solar power then this is the unit to do it.
Powerful 12 volt motor matched to a worm drive with a pitch to provide the speed and torque control required.
Two sets of brackets are provided with each motor to make installation a simple bolt on affair with no welding required. The bracket position is adjustable to allow you to take advantage of using the maximum amount of stroke possible as well as those gates that must go past ninety degrees.
It is possible to use a variety of control boards to control the E3300 and we have developed some excellent solar powered applications. The factory designed board is the ID200 and can be used in a number of different modes and as a one or two motor controller complete with code hopping receiver. Another option is the LOGICEGATE1224 control board with an intuitive screen that asks you questions to program. Both available as double gate kits with great kit savings. To see the E3300 solar kits click here.
So if you are looking for fashion the E3300 may not be for you but if you want to open and close a farm gate using solar power then this is the unit to do it.
Powerful 12 volt motor matched to a worm drive with a pitch to provide the speed and torque control required.
Two sets of brackets are provided with each motor to make installation a simple bolt on affair with no welding required. The bracket position is adjustable to allow you to take advantage of using the maximum amount of stroke possible as well as those gates that must go past ninety degrees.
It is possible to use a variety of control boards to control the E3300 and we have developed some excellent solar powered applications. The factory designed board is the ID200 and can be used in a number of different modes and as a one or two motor controller complete with code hopping receiver. Another option is the LOGICEGATE1224 control board with an intuitive screen that asks you questions to program. Both available as double gate kits with great kit savings. To see the E3300 solar kits click here.
PRICING
E3300 -
Single operator
$627.00
LOGICID200 -
Logic control for one or two motors with receiver.
$447.00
REMGR -
4 channel 433mhz key ring style remote control.
$50.00
KEYPADP6 -
Wireless outdoor keypad
$146.00
BATT12V7AH -
Battery backup for LOGICID200
$62.00
SOLAR12.25.26KIT -
25W panel, 26ah battery, regulator
$348.00
SPECIFICATION
Motor Voltage -
12 volts DC
Current Standby -
0mA
Current at use -
2.0A
Motor power -
70W
Maximum thrust -
1500Nm
Opening Time 90 degrees -
26.0 seconds using the full stroke
Maximum gate width -
5000 mm
Duty cycle -
50%
Height -
65mm
Width -
80mm
Length -
880mm
Stroke -
495mm
Weight -
7.0 Kg
IP rating -
IP54
DOWNLOAD & MANUALS RESOURCE PAGE
OPTIONS
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
