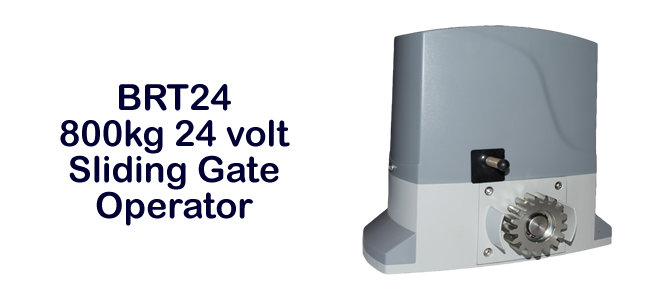

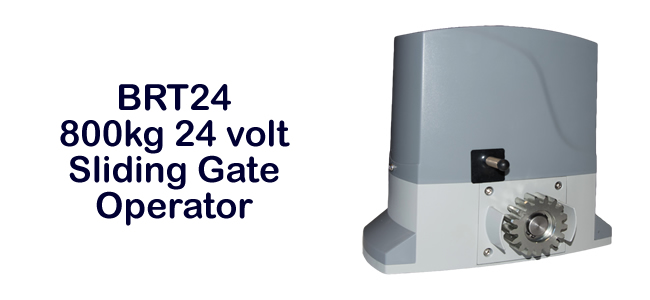

BRTKIT24 SLIDING AUTOMATIC GATE OPENER
The BRTKIT24 by Italian company AND is possibly the best value gate operator in Australia. To get this quality along with the featured ID410 control board and supern ZGM remote controls at such a low price is incredible.
24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 800KG
The BRTKIT24 by AND is typical of AND quality and reliability. The BRTKIT24 is designed for residential sliding automatic gates up to 800kg in weight.

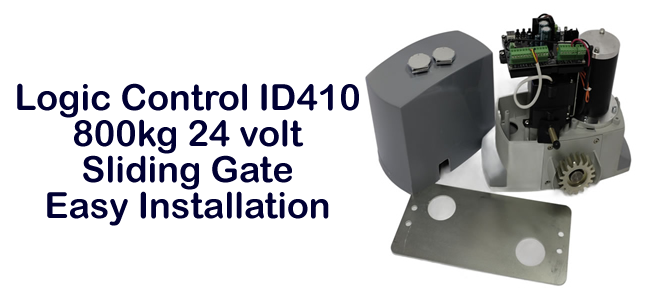

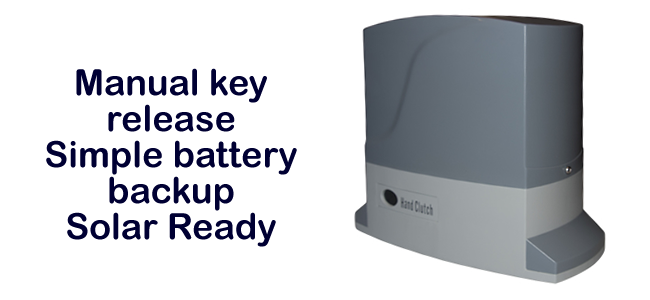

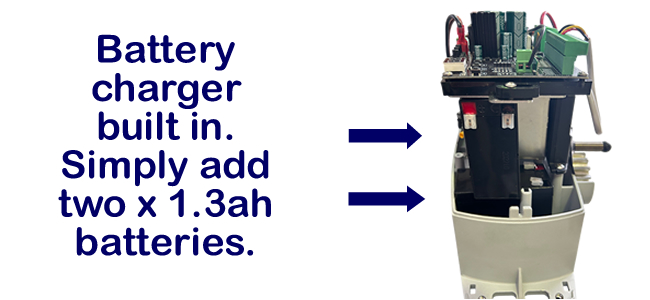

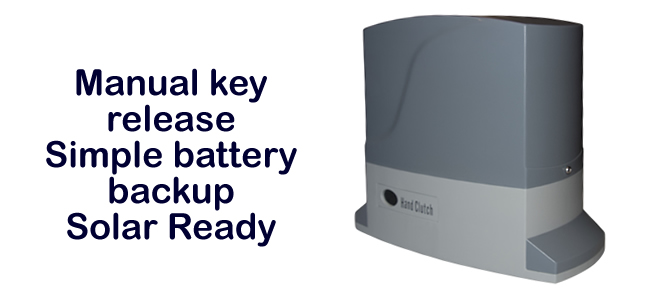

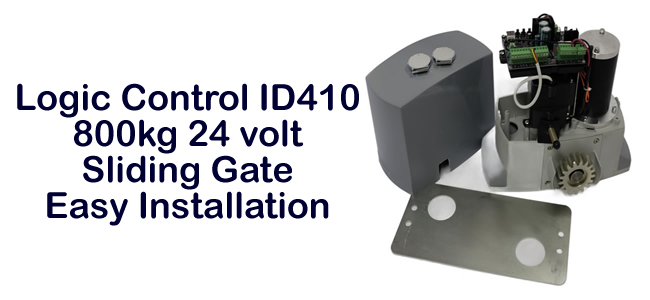

The BRTKIT24 has a built in control board with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BRTKIT24 also comes with a base plate. Battery backup is optional with the addition of two rechargeable batteries. The BRTKIT24 can also be powered by solar.
PRICING
BRTKIT24 -
With logic control board, receiver and remote control.
$892.00
REMZGM -
4 channel 433mhz key ring style remote control.
$39.00
KEYPADP6 -
Wireless outdoor keypad
$160.00
RACK1000 -
Metre length of steel reinforced nylon rack - six fixing lugs.
$25.00
SOLAR24.25.26KIT -
2 x 25W panel, 2 x 26ah battery, regulator
$507.00
SPECIFICATION
Motor Voltage -
24 volts DC
Current Standby -
8mA
Current at use -
3.2A
Motor power -
80W
Torque -
12Nm
Operating speed -
11 metres per minute (adjustable)
Maximum gate size -
800 kg
Duty cycle -
80%
Height -
297mm
Width -
325mm
Depth -
185mm
Weight -
10.2 Kg
IP rating -
IP44
DOWNLOAD & MANUALS RESOURCE PAGE
OPTIONAL
RACK - Most sliding gate systems require rack (There are a few chain drive operators for industrial gates). Available in steel reinfoced nylon for gates up to 800 kilograms and a larger galvanised steel version for heavier industrial gates. One metre lengths with easy fix points.
Click to view.
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights.
Click to view.
