BIG40QI INDUSTRIAL SLIDING AUTOMATIC GATE OPENER
The BIG40QI is an industrial sliding gate operator with a high duty cycle massive torque for those big gates thanks to the three phase motor. Gates up to 4000kg.
240 VOLT SLIDING ELECTRIC GATE OPERATOR- COMMERCIAL / INDUSTRIAL - 4000KG
- Automation for commercial and industrial use
- Automation for gates up to 4000 kg
- 240 V three-phase gate operator
- Single-phase 240V power supply
- Soft start and soft stop
- Adjustable opening and closing speed of the control unit and inverter

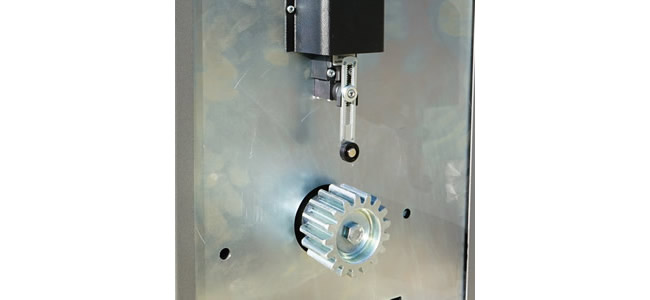

- Oil bath vertical pinion operator

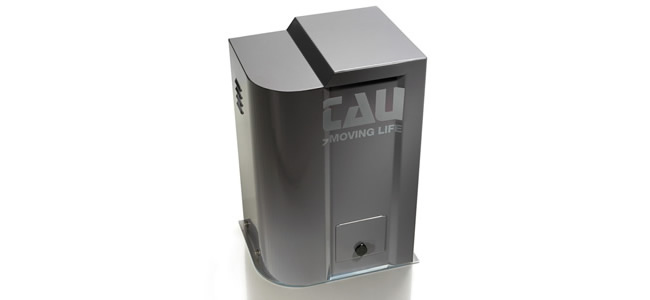

- Painted steel housing

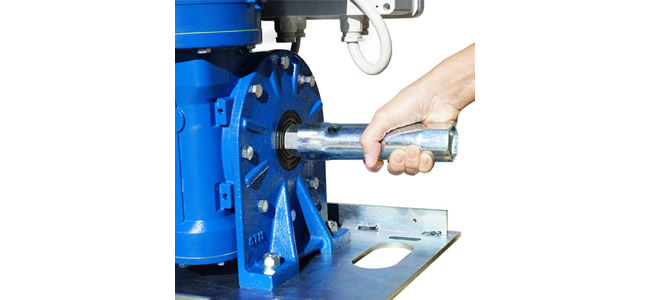

- Manual release mechanism
- Mechanical clutch for crush prevention • Automation suitable for large sliding gates
- Higher torque and power thanks to the inverter technology
- Self-ventilated operator to increase the working cycle
- Steel and bronze gears to increase endurance and reduce noise
PRICING
BIG40QI -

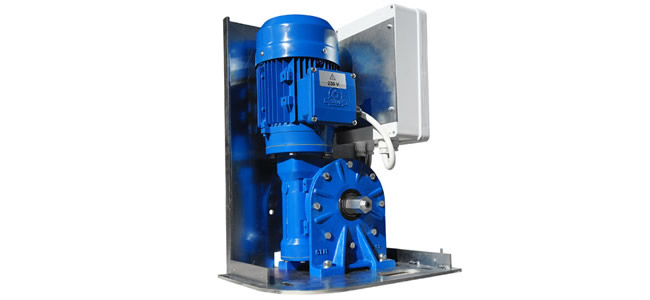

Motor complete with logic control board and base plate.
$7274.00
RACKSTEEL -
One metre lengths of steel rack with adjustable fixing angle.
$42.00
SPECIFICATION
Motor Voltage -
415 volts - 240 volt supply only
Current Standby -
100mA
Current at use -
3.6A
Motor Power-
1500W
Operating speed -
Up to 18 metres per minute
Maximum gate size -
4000 kg standard gate and 2800kg cantilever gate.
Duty cycle -
100%

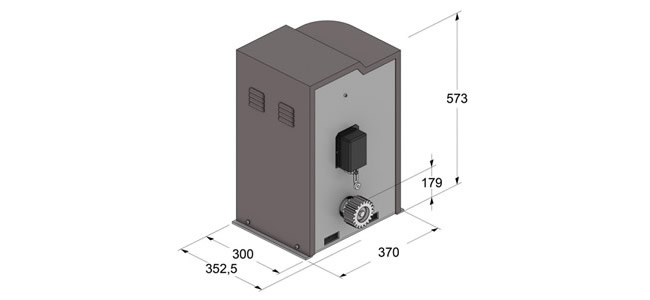

Height -
573mm
Width -
400mm
Depth -
355mm
Weight -
55 Kg
IP rating -
IP54
DOWNLOAD & MANUALS RESOURCE PAGE
OPTIONAL
RACK - Most sliding gate systems require rack (There are a few chain drive operators for industrial gates). Available in steel reinfoced nylon for gates up to 800 kilograms and a larger galvanised steel version for heavier industrial gates. One metre lengths with easy fix points. Click to view.
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. Click to view.
MAINS POWER FILTER - Gate automation like this usually is installed on commercial and industrial sites where you can be pretty certain the mains power is less than desirable. Dirty power can result in lack of reliability and increased service costs. Installing a good quality filter will not only guard against spikes and surges but clean up the power before it reaches your electronics. There is more information here.
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. Click to view.
MAINS POWER FILTER - Gate automation like this usually is installed on commercial and industrial sites where you can be pretty certain the mains power is less than desirable. Dirty power can result in lack of reliability and increased service costs. Installing a good quality filter will not only guard against spikes and surges but clean up the power before it reaches your electronics. There is more information here.
