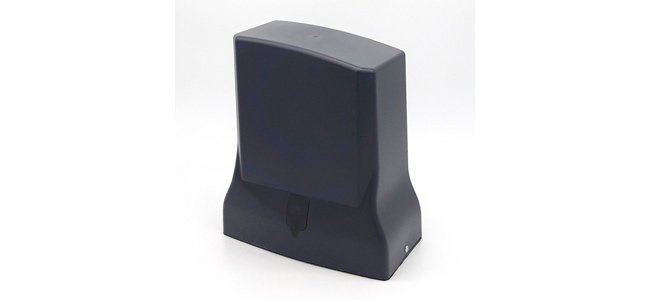

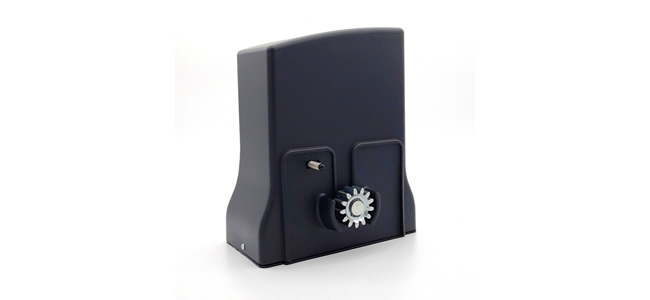

ASA612 SLIDING AUTOMATIC GATE OPERATOR
Designed for residential sliding gates the ASA6 is an automatic gate opener for sliding solar powered electric gates up to 600kg that allows low voltage power to be located elsewhere and run to the motor.
12 VOLT SLIDING ELECTRIC GATE OPERATOR - RESIDENTIAL - 600KG
Manufactured in Italy the ASA612 is a 12 volt sliding gate operator. Like all sliding gate operators the ASA612 is self locking and comes with manual override by key for emergencies. The ASA612 is suitable for gates to 600 kilograms in weight. The ASA612 has a full moulded base and comes complete with mounting plate and limit actuators. The ASA612 has become one of our most popular sliding gate motors due to the fact that the logic control and unique removable transformer that allows you to locate mains power elsewhere and run low voltage cabling out to the motor. The transformer has three separate voltage settings to allow for voltage drop over distance.
The ASA612 uses an inbuilt control board with inputs for photocells and switches etc. The control board also allows for slow down at the end of each cycle allowing for a soft finish and includes a battery charge board for battery backup. The ASA612 can also be used to run on solar power by simply adding a solar kit.
NOTE: The asa612 is solar ready. We have discounted pricing online when you bundle with solar power. Click here.
The ASA612 uses an inbuilt control board with inputs for photocells and switches etc. The control board also allows for slow down at the end of each cycle allowing for a soft finish and includes a battery charge board for battery backup. The ASA612 can also be used to run on solar power by simply adding a solar kit.
NOTE: The asa612 is solar ready. We have discounted pricing online when you bundle with solar power. Click here.
PRICING
ASA612 -

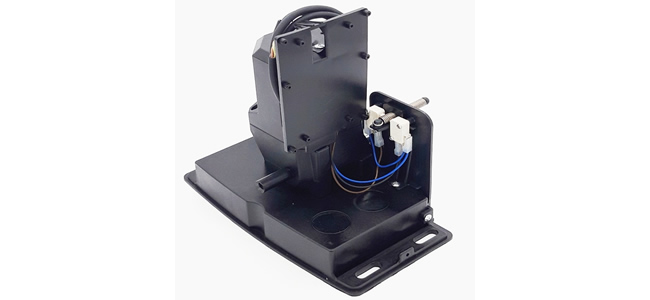

Motor complete with logic control board and base plate.
$774.00
REMGR -
4 channel 433mhz key ring style remote control.
$50.00
KEYPADP6 -
Wireless outdoor keypad
$146.00
RACK1000 -
Metre length of steel reinforced nylon rack - six fixing lugs.
$24.00
SOLAR12.25.26KIT -
25W panel, 26ah battery, regulator
$348.00
SPECIFICATION
Motor Voltage -
12 volts DC
Current Standby -
60mA
Current at use -
2.5A
Motor power -
60W
Maximum thrust -
70Nm
Operating speed -
10.2 metres per minute
Maximum gate size -
600 kg
Duty cycle -
70%
Height -
325mm
Width -
288mm
Depth -
188mm
Weight -
7.0 Kg
IP rating -
IP44
DOWNLOAD & MANUALS RESOURCE PAGE
OPTIONAL
RACK - Most sliding gate systems require rack (There are a few chain drive operators for industrial gates). Available in steel reinfoced nylon for gates up to 800 kilograms and a larger galvanised steel version for heavier industrial gates. One metre lengths with easy fix points. Click to view.
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. Click to view.
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. Click to view.
