AND ALPI24KIT DOUBLE GATE AUTOMATIC GATE OPERATOR
The ALPI24 double gate kit is made by Italian company AND which translates into quality, reliability and performance. The ALPI24 kit is suitable for double gate openings up to 5.0 metres wide. The ALPI is designed with narrow gate posts in mind at just 52mm wide.
24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 2.5 METRE LEAF

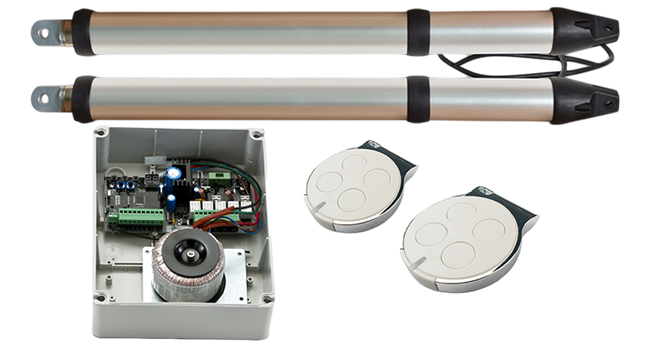

Manufactured by Italian company AND the ALPI24 is only 52mm wide making it perfect for installations with narrow posts. The sleek powerful 24 volt motors are perfectly paired with the LOGICID200 and kit comes complete with two of the excellent REMZGM remote controls.
Quick installation
Small dimensions
Guaranteed quality
Minimum maintenance
Max gate weight 200 kg
Operating temperature range -20 / +60 °C
Quick installation
Small dimensions
Guaranteed quality
Minimum maintenance
Max gate weight 200 kg
Operating temperature range -20 / +60 °C
PRICING
ALPI24KIT -
Double gate kit with logic control and two remote controls
$966.00
REMZGM -
4 channel 433mhz key ring style remote control.
$39.00
KEYPADP6 -
Wireless outdoor keypad
$160.00
SOLAR24.25.26KIT -
2 x 25W panel, 2 x 26ah battery, regulator
$507.00
SPECIFICATION
Motor Voltage -
24 volts DC
Current Standby -
80mA
Current at use -
1.0A
Motor power -
35W
Maximum thrust -
1000N
Opening Time 90 degrees -
10-18 seconds
Maximum gate width -
2500 mm
Duty cycle -
50%
Height -
68mm
Width -
52mm
Length -
700mm
Weight -
4.0 Kg
IP rating -
IP44
DOWNLOAD & MANUALS RESOURCE PAGE
OPTIONS
PHOTOCELLS - A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent gates from closing on vehicles or pedestrians. Sliding gates can have a single set between the gate posts or multiple sets if desired at various heights. More information and a full list of product here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
ELECTRIC GATE LOCK - There is varied debate about when an automatic gate should have the extra security of an electric gate lock. The lock increases security and also protects your gate operating system. It operates automatically when you choose to open your gate. Check them out here.
